Style 5 Custom Neo-Angle Shower Bases

Style 5 Neo-Angle Triple Treshold Shower Base Measuring Diagram
Use with a 3 sided glass enclosure.
The door would typically be on the clipped corner.

Custom lengths for side G are available in Denyx only.

Return to Style Guide


We do not adjust any of the sizes provided.


Measurement A and B are from the studs to the outside of the shower dam.

Measurement C and D are from the studs to the CENTER of the drain.

We have molds for a threshold that uses a 24" or 30" door on the enclosure with the door in the typical location on side G.  That is the centerline size for the glass not the outside dam length.

The E and F sizes are a fixed length relative to the lengths of A and B.  We can calculate those sizes for you when you order.

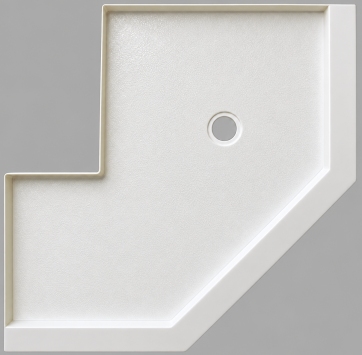

Neo-Angle Custom Shower Base Style 5 Lunar Denyx Solid Surfacing
